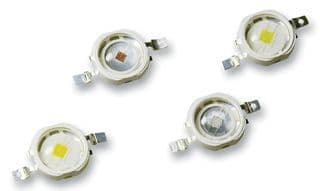

ASMT-AN00-NST00

Single Color LED, Neutral White, 6mm, ROHS COMPLIANT PACKAGE-2

PackageSMD/SMT

MountingSurface Mount

Quick Jump:

Broadcom ASMT-AN00-NST00 technical specifications.

Package/Case	SMD/SMT
Color	White
Correlated Color Temperature (CCT)	4500K
Forward Current	350mA
Height	4.1mm
Illumination Color	White
Length	7.4mm
Luminous Flux	65lm
Max Current Rating	500mA
Max Operating Temperature	120°C
Min Operating Temperature	-40°C
Max Power Dissipation	1.75W
Mount	Surface Mount
Package Quantity	1000
Packaging	Rail/Tube
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	ASMT-Ax00
Thermal Resistance of Package	10°C/W
Viewing Angle	140°
Width	7.4mm

RoHS

Compliant
