Technical Specifications
Broadcom ASMT-MWA0-NKK00 technical specifications.
General
Color
White
Correlated Color Temperature (CCT)
10000K
Forward Current
350mA
Height
4.6mm
Illumination Color
White
Length
24mm
Lens Style
Flat
Luminous Flux
60lm
Max Current Rating
500mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.4W
Nominal Supply Current
350mA
Package Quantity
350
Power Dissipation
1.4W
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Moonstone™
Viewing Angle
110°
Width
20mm
Compliance
RoHS
Compliant
Datasheet
Broadcom ASMT-MWA0-NKK00 Datasheet
Download the complete datasheet for Broadcom ASMT-MWA0-NKK00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

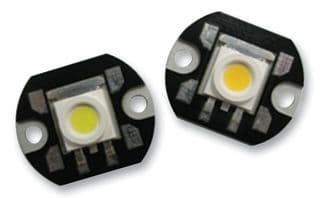

Product Images
