8-character, 5x7 dot matrix LED display in yellow, featuring a 3.71mm viewing area height and 2.11mm viewing area length. This through-hole mount component operates with a 5V supply voltage, drawing 10mA forward current and delivering 64mcd luminous intensity. It supports an 8-bit parallel interface and is RoHS compliant, with an operating temperature range of -40°C to 85°C.
PackageDIP
MountingThrough Hole
Power2.4W
Quick Jump:
Technical Specifications
Broadcom HCMS-2911 technical specifications.
General
Package/Case
DIP
Color
Yellow
Depth
10.16mm
Display Type
Dot Matrix
Forward Current
10mA
Illumination Color
Yellow
Interface
Parallel, 8 bit
Lead Free
Lead Free
Length
35.56mm
Luminous Intensity
64mcd
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Through Hole
Number of Elements
280
Operating Supply Voltage
5V
Package Quantity
10
Packaging
Rail/Tube
Power Consumption
2.4W
Power Dissipation
2.4W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
HCMS-29xx
Viewing Area (height)
3.71mm
Viewing Area Length
2.11mm
DC Rated Voltage
5V
Wavelength
585nm
Compliance
RoHS
Compliant
Datasheet
Broadcom HCMS-2911 Datasheet
Download the complete datasheet for Broadcom HCMS-2911 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

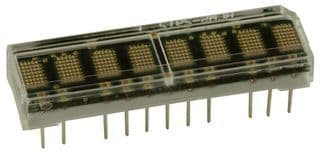

Product Images
