PackageDIP
MountingThrough Hole
Power2.4W
Quick Jump:
Technical Specifications
Broadcom HCMS-2914 technical specifications.
General
Package/Case
DIP
Color
Orange
Depth
10.16mm
Display Type
Dot Matrix
Illumination Color
Orange
Interface
Serial
Lead Free
Lead Free
Length
35.56mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Through Hole
Number of Elements
280
Package Quantity
10
Packaging
Rail/Tube
Power Dissipation
2.4W
RoHS Compliant
Yes
Series
HCMS-29xx
Viewing Area (height)
3.71mm
Viewing Area Length
2.11mm
DC Rated Voltage
5V
Wavelength
600nm
Compliance
RoHS
Compliant
Datasheet
Broadcom HCMS-2914 Datasheet
Download the complete datasheet for Broadcom HCMS-2914 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

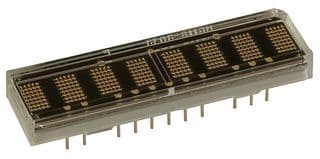

Product Images
