BROADCOM

HCNW4506-500E

Datasheet

1-Ch Optocoupler, 5kV Isolation, 1Mbps, 25mA FC, SMD

Broadcom

HCNW4506-500E

Name: HCNW4506-500E Broadcom
Brand: Broadcom
SKU: HCNW4506-500E

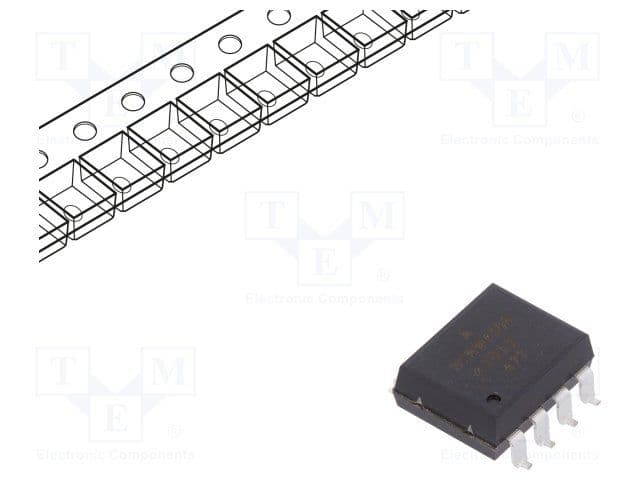

1-Ch Optocoupler, 5kV Isolation, 1Mbps, 25mA FC, SMD

Surface mount logic IC output optocoupler featuring 5kV isolation and a 1-element, unidirectional design. Achieves a 1Mbps data rate with a 650ns propagation delay and turn-on delay time. Operates with a 20mA input current and 25mA forward current, delivering up to 15mA output current per channel. Rated for a 30V output voltage and 145mW power dissipation, with an operating temperature range of -40°C to 100°C.

PackageSMD/SMT

MountingSurface Mount

Power145mW

Quick Jump:

Technical Specifications

Broadcom HCNW4506-500E technical specifications.

General

Package/Case	SMD/SMT
Current Transfer Ratio	90%
Data Rate	1Mbps
Direction	Unidirectional
Forward Current	25mA
Input Current	20mA
Input Type	DC
Isolation Voltage	5kV
Lead Free	Lead Free
Max Operating Temperature	100°C
Min Operating Temperature	-40°C
Max Output Current	15mA
Max Power Dissipation	145mW
Mount	Surface Mount
Number of Channels	1
Number of Elements	1
Output Current	15mA
Output Current per Channel	15mA
Output Voltage	30V
Package Quantity	750
Packaging	Tape and Reel
Power Dissipation	145mW
Propagation Delay	650ns
Radiation Hardening	No
Reverse Breakdown Voltage	3V
RoHS Compliant	Yes
Turn-On Delay Time	650ns
