2-element logic IC output optocoupler featuring 3750V isolation and 10MBps data rate. Surface mount SOIC package with unidirectional signal flow. Delivers 50mA output current per channel with 75ns propagation delay and 10ns fall time. Operates from -40°C to 85°C with 60mW power dissipation.
PackageSOIC
MountingSurface Mount
Power60mW
Quick Jump:
Technical Specifications
Broadcom HCPL-0630 technical specifications.
General
| Package/Case | SOIC |
| Direction | Unidirectional |
| Fall Time | 10ns |
| Forward Current | 15mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 50mA |
| Max Power Dissipation | 60mW |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Elements | 2 |
| Output Current | 50mA |
| Output Current per Channel | 50mA |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Power Dissipation | 60mW |
| Propagation Delay | 75ns |
| Radiation Hardening | No |
| Reverse Breakdown Voltage | 5V |
| RoHS Compliant | No |
| Turn-On Delay Time | 75ns |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Broadcom HCPL-0630 Datasheet
Download the complete datasheet for Broadcom HCPL-0630 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

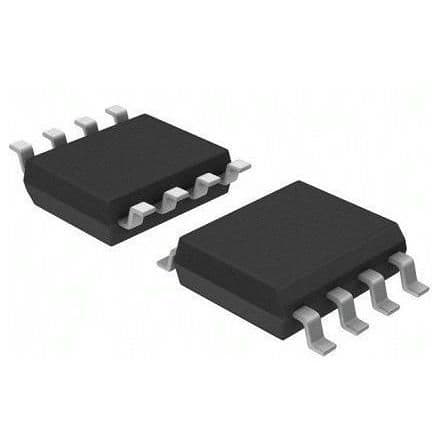

Product Images
