HCPL-0631-500E

Datasheet

2-Ch Optocoupler, 3.75kV Isolation, 10Mbps, SOIC

Broadcom

HCPL-0631-500E

Name: HCPL-0631-500E Broadcom
Brand: Broadcom
SKU: HCPL-0631-500E

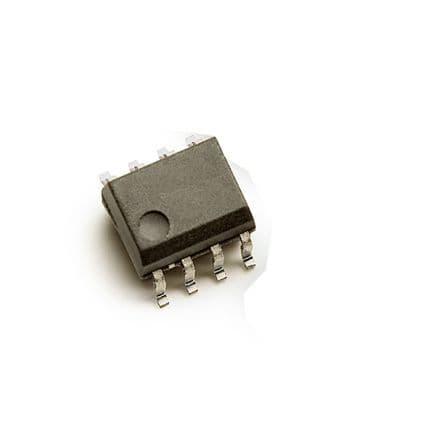

2-Ch Optocoupler, 3.75kV Isolation, 10Mbps, SOIC

General purpose optocoupler featuring 2-element, unidirectional, logic IC output. Achieves 3.75kV isolation voltage with a 10Mbps data rate and 75ns propagation delay. Operates with 15mA forward and input current, delivering up to 50mA output current per channel. Packaged in a surface-mount SOIC-8 case, this RoHS compliant component offers a wide operating temperature range of -40°C to 85°C.

PackageSOIC

Voltage5V

MountingSurface Mount

Power60mW

Quick Jump:

Technical Specifications

Broadcom HCPL-0631-500E technical specifications.

General

Package/Case	SOIC
Data Rate	10Mbps
Direction	Unidirectional
Fall Time	10ns
Forward Current	15mA
Input Current	15mA
Input Type	DC
Isolation Voltage	3.75kV
Isolation Voltage-Max	3.75kV
Lead Free	Lead Free
Max Collector Current	50mA
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Output Voltage	7V
Max Power Dissipation	60mW
Mount	Surface Mount
Number of Channels	2
Number of Elements	2
Output Current	50mA
Output Current per Channel	50mA
Output Voltage	7V
Package Quantity	1500
Packaging	Tape and Reel
Power Dissipation	60mW
Propagation Delay	75ns
Radiation Hardening	No
Reach SVHC Compliant	No
Reverse Breakdown Voltage	5V
Reverse Voltage (DC)	5V
RoHS Compliant	Yes
Turn-On Delay Time	75ns
Voltage	5V
