General purpose optocoupler featuring 3.75kV isolation voltage and a 25Mbps data rate. This unidirectional, 1-element device offers a push-pull output type with a maximum output current of 10mA. Designed for surface mounting in an SOIC package, it operates within a temperature range of -40°C to 85°C and boasts UL, CSA, and VDE approvals. Key specifications include a 6.5V collector-emitter breakdown voltage and a maximum power dissipation of 150mW.
PackageSOIC
Voltage5V
MountingSurface Mount
Power150mW
Quick Jump:
Technical Specifications
Broadcom HCPL-0721-000E technical specifications.
General
Approvals
UL, CSA, VDE
Package/Case
SOIC
Collector Emitter Breakdown Voltage
6.5V
Data Rate
25Mbps
Direction
Unidirectional
Fall Time
8ns
Isolation Voltage
3.75kV
Isolation Voltage-Max
3.75kV
Lead Free
Lead Free
Max Input Current
10uA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
10mA
Max Output Voltage
6.5V
Max Power Dissipation
150mW
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Output Current
10mA
Output Current per Channel
10mA
Output Type
PUSH-PULL
Package Quantity
100
Packaging
Rail/Tube
Power Dissipation
150mW
Propagation Delay
40ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Turn-On Delay Time
40ns
Voltage
5V
Compliance
RoHS
Compliant
Datasheet
Broadcom HCPL-0721-000E Datasheet
Download the complete datasheet for Broadcom HCPL-0721-000E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

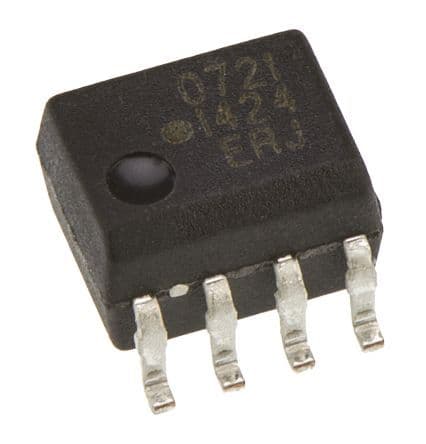

Product Images
