Surface mount transistor output optocoupler featuring 1-element, 3.75kV isolation, and 80V collector-emitter breakdown voltage. This component offers a 160% current transfer ratio with a 20mA input current and 50mA maximum collector current. Operating across a -55°C to 100°C temperature range, it is ROHS compliant and available in a Tape and Reel package. Approvals include UL, CSA, and VDE.
PackageSMD/SMT
MountingSurface Mount
Power170mW
Quick Jump:
Technical Specifications
Broadcom HCPL-181-06AE technical specifications.
General
Approvals
UL, CSA, VDE
Package/Case
SMD/SMT
Collector Emitter Breakdown Voltage
80V
Collector Emitter Saturation Voltage
200mV
Collector Emitter Voltage (VCEO)
80V
Collector-emitter Voltage-Max
200mV
Current Transfer Ratio
160%
Fall Time
18000ns
Forward Current
50mA
Input Current
20mA
Input Type
DC
Isolation Voltage
3.75kV
Lead Free
Lead Free
Max Collector Current
50mA
Max Input Current
50mA
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Output Voltage
80V
Max Power Dissipation
170mW
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Output Current per Channel
50mA
Output Voltage
80V
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
170mW
Reach SVHC Compliant
No
Reverse Breakdown Voltage
6V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Broadcom HCPL-181-06AE Datasheet
Download the complete datasheet for Broadcom HCPL-181-06AE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

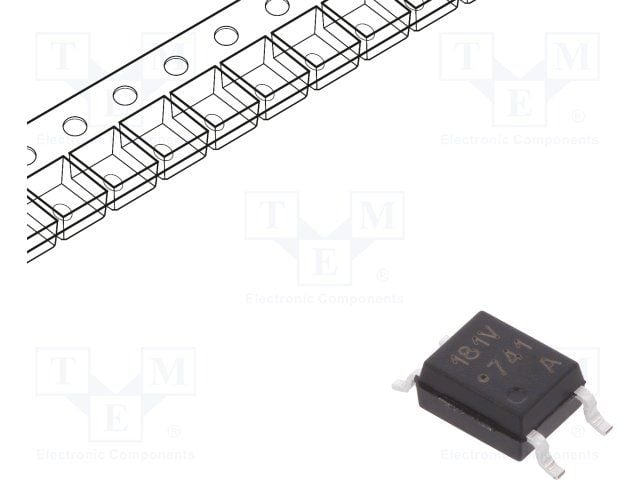

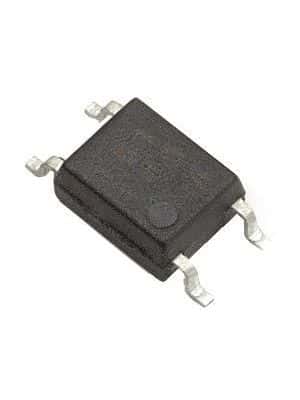

Product Images
