Surface mount transistor output optocoupler featuring 1-element, 3.75kV isolation, and 80V collector-emitter breakdown voltage. Achieves a 600% current transfer ratio with a 20mA input current and 50mA maximum collector current. Operates across a -55°C to 100°C temperature range with 170mW maximum power dissipation. UL, CSA, and VDE approved, this RoHS compliant component is supplied in tape and reel packaging.
PackageSMD/SMT
MountingSurface Mount
Power170mW
Quick Jump:
Technical Specifications
Broadcom HCPL-181-06DE technical specifications.
General
Approvals
UL, CSA, VDE
Package/Case
SMD/SMT
Collector Emitter Breakdown Voltage
80V
Collector Emitter Saturation Voltage
200mV
Collector Emitter Voltage (VCEO)
80V
Current Transfer Ratio
600%
Fall Time
18000ns
Forward Current
50mA
Input Current
20mA
Input Type
DC
Isolation Voltage
3.75kV
Lead Free
Lead Free
Max Collector Current
50mA
Max Input Current
50mA
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Power Dissipation
170mW
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
170mW
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
6V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Broadcom HCPL-181-06DE Datasheet
Download the complete datasheet for Broadcom HCPL-181-06DE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

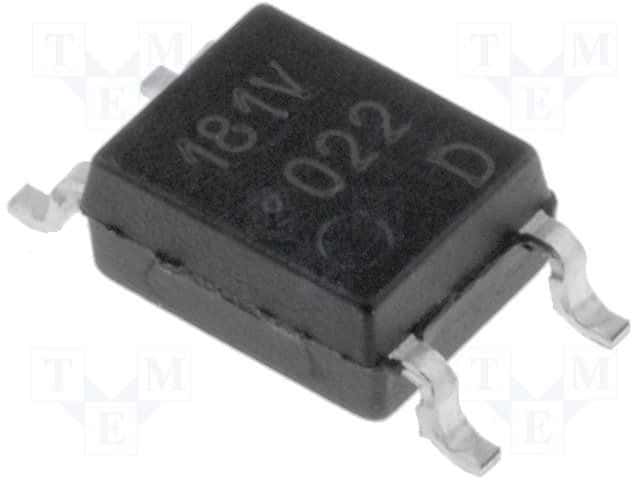

Product Images
