High-speed logic output optocoupler featuring unidirectional DC input and a single channel. Offers 3.75kV isolation voltage, 1Mbps data rate, and a 90% current transfer ratio. With a 30V collector-emitter breakdown voltage and 15mA maximum output current, this component is housed in an 8-pin PDIP package for through-hole mounting. Operating temperature range is -40°C to 100°C, with UL approval and RoHS compliance.
PackagePDIP
MountingThrough Hole
Power145mW
Quick Jump:
Technical Specifications
Broadcom HCPL-4506-000E technical specifications.
General
| Approvals | UL |
| Package/Case | PDIP |
| Collector Emitter Breakdown Voltage | 30V |
| Current Transfer Ratio | 90% |
| Data Rate | 1Mbps |
| Direction | Unidirectional |
| Forward Current | 25mA |
| Input Current | 20mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Isolation Voltage-Max | 3.75kV |
| Lead Free | Lead Free |
| Max Input Current | 230mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 15mA |
| Max Output Voltage | 30V |
| Max Power Dissipation | 145mW |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current | 15mA |
| Output Current per Channel | 15mA |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 145mW |
| Propagation Delay | 650ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 5V |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 650ns |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HCPL-4506-000E Datasheet
Download the complete datasheet for Broadcom HCPL-4506-000E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

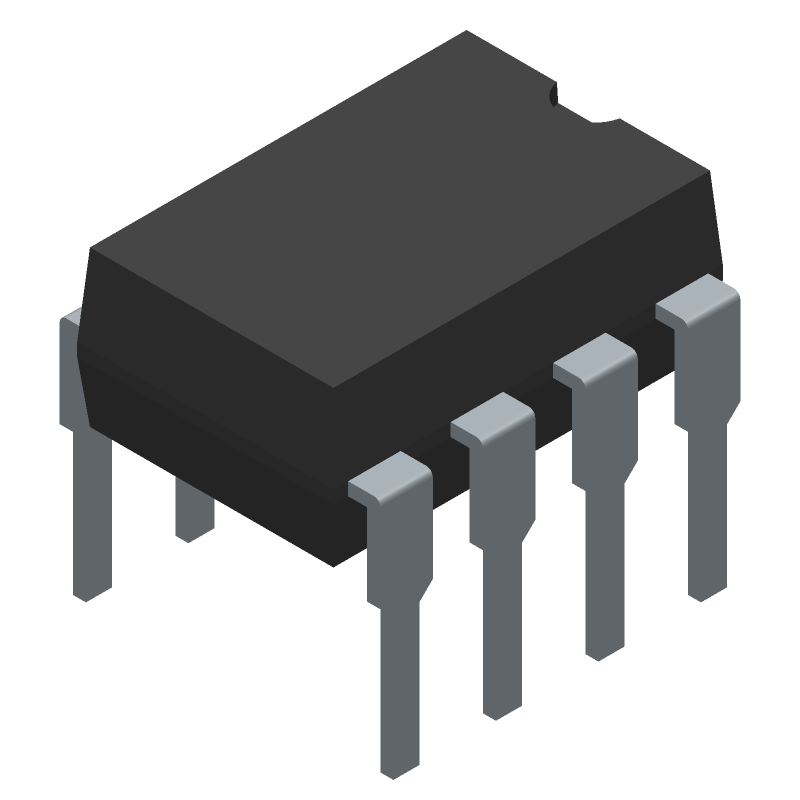

Product Images
