Surface mount transistor output optocoupler featuring 5kV isolation voltage and a 1:1 current transfer ratio. This 1-element device offers a maximum collector current of 50mA and a collector-emitter voltage of 35V, with a low 200mV saturation voltage. Operating within a -30°C to 100°C temperature range, it supports DC input and is RoHS compliant.
PackageSMD/SMT
MountingSurface Mount
Power200mW
Quick Jump:
Technical Specifications
Broadcom HCPL-817-30BE technical specifications.
General
Package/Case
SMD/SMT
Collector Emitter Saturation Voltage
200mV
Collector Emitter Voltage (VCEO)
35V
Collector-emitter Voltage-Max
200mV
Current Transfer Ratio
600%
Fall Time
18000ns
Forward Current
50mA
Input Current
20mA
Input Type
DC
Isolation Voltage
5kV
Lead Free
Lead Free
Max Collector Current
50mA
Max Input Current
50mA
Max Operating Temperature
100°C
Min Operating Temperature
-30°C
Max Output Voltage
70V
Max Power Dissipation
200mW
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Output Current per Channel
50mA
Output Voltage
70V
Package Quantity
100
Packaging
Rail/Tube
Power Dissipation
200mW
Radiation Hardening
No
Reverse Breakdown Voltage
6V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Broadcom HCPL-817-30BE Datasheet
Download the complete datasheet for Broadcom HCPL-817-30BE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

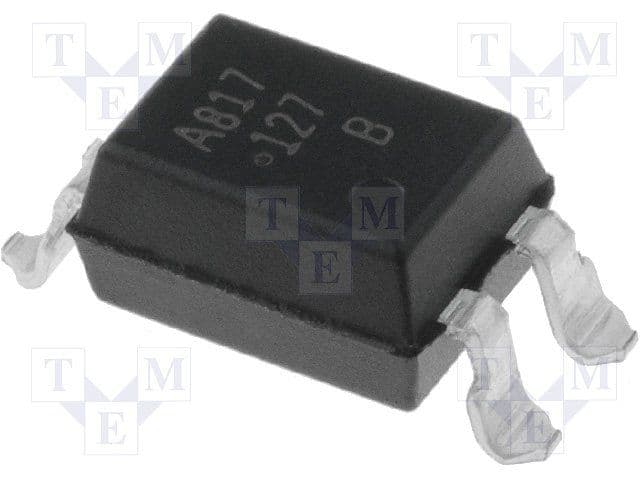

Product Images
