Surface mount transistor output optocoupler featuring 5kV isolation voltage and 1 channel. Offers a 400% current transfer ratio, 35V collector-emitter voltage, and 50mA maximum collector current. Designed for DC input with a 20mA input current requirement. Operating temperature range from -30°C to 100°C, with a 200mV collector-emitter saturation voltage. Packaged in tape and reel for efficient surface mounting.
PackageSMD/SMT
MountingSurface Mount
Power200mW
Quick Jump:
Technical Specifications
Broadcom HCPL-817-56CE technical specifications.
General
Package/Case
SMD/SMT
Collector Emitter Saturation Voltage
200mV
Collector Emitter Voltage (VCEO)
35V
Collector-emitter Voltage-Max
200mV
Current Transfer Ratio
400%
Fall Time
18000ns
Forward Current
50mA
Input Current
20mA
Input Type
DC
Isolation Voltage
5kV
Lead Free
Lead Free
Max Collector Current
50mA
Max Input Current
50mA
Max Operating Temperature
100°C
Min Operating Temperature
-30°C
Max Output Voltage
70V
Max Power Dissipation
200mW
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Output Current per Channel
50mA
Output Voltage
70V
Package Quantity
1000
Packaging
Tape and Reel
Power Dissipation
200mW
Reverse Breakdown Voltage
6V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Broadcom HCPL-817-56CE Datasheet
Download the complete datasheet for Broadcom HCPL-817-56CE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

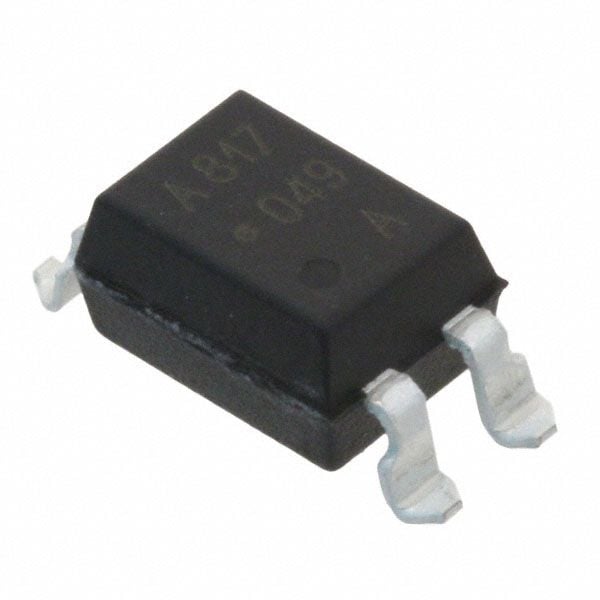

Product Images
