Red 7-segment numeric LED display, 1-character, 7mm viewing height, 4.6mm character width. Surface mount package (SMD/SMT) with a forward current of 20mA and luminous intensity of 7.5mcd. Features a 634nm wavelength, 5V reverse voltage, and operates from -40°C to 105°C. RoHS compliant, 65mW power dissipation.
PackageSMD/SMT
MountingSurface Mount
Power65mW
Quick Jump:
Technical Specifications
Broadcom HDSM-283C technical specifications.
General
Package/Case
SMD/SMT
Character Width
4.6mm
Color
Red
Depth
10.8mm
Display Type
Segment
Forward Current
20mA
Height
0.148inch
Illumination Color
Red
Length
0.425inch
Luminous Intensity
7.5mcd
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Power Dissipation
65mW
Mount
Surface Mount
Number of Characters
1
Number of Elements
9
Number of Positions
1
Number of Segments
7
Package Quantity
1000
Packaging
Tape and Reel
Power Dissipation
65mW
Reach SVHC Compliant
No
Reverse Voltage
5V
RoHS Compliant
Yes
Viewing Area (height)
7mm
Viewing Area Length
4.6mm
Wavelength
634nm
Width
0.295inch
Compliance
RoHS
Compliant
Datasheet
Broadcom HDSM-283C Datasheet
Download the complete datasheet for Broadcom HDSM-283C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

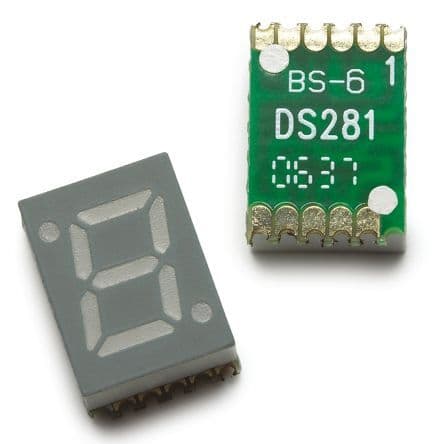

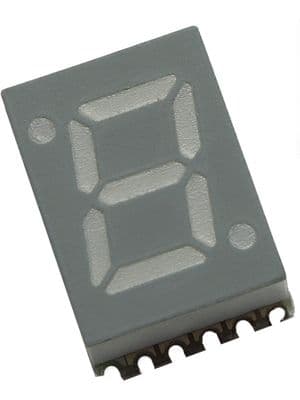

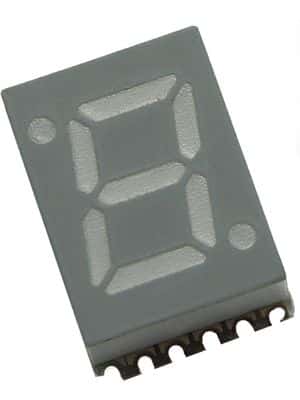

Product Images
