Two-character yellow numeric LED display, 10mm viewing height, featuring 16 elements per character. Surface mountable in an SMD/SMT package, this display operates with a 2.1V forward voltage and 25mA forward current, delivering 15mcd luminous intensity. It boasts a wide operating temperature range from -40°C to 105°C and a maximum power dissipation of 65mW. The display is supplied in a tape and reel package, containing 500 units, and is RoHS compliant.
PackageSMD/SMT
MountingSurface Mount
Power65mW
Quick Jump:
Technical Specifications
Broadcom HDSM-443F technical specifications.
General
Package/Case
SMD/SMT
Color
Yellow
Depth
15mm
Display Type
Segment
Forward Current
25mA
Height
0.512inch
Illumination Color
Yellow
Length
19.6mm
Luminous Intensity
15mcd
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Power Dissipation
65mW
Mount
Surface Mount
Number of Characters
2
Number of Elements
16
Operating Supply Voltage
2.1V
Package Quantity
500
Packaging
Tape and Reel
Power Dissipation
65mW
Reach SVHC Compliant
No
Reverse Voltage
5V
RoHS Compliant
Yes
Viewing Area (height)
10mm
Viewing Area Length
6.2mm
Width
0.772inch
Compliance
RoHS
Compliant
Datasheet
Broadcom HDSM-443F Datasheet
Download the complete datasheet for Broadcom HDSM-443F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

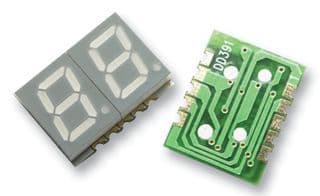

Product Images
