Four-character numeric LED display, green illumination, featuring a 14.2mm viewing area height. This through-hole mount component operates with a 10mA forward current and a 3V reverse voltage. It offers a luminous intensity of 3.2mcd and a maximum power dissipation of 65mW. The display is housed in a DIP package with a 2.54mm lead pitch and a 15.24mm row spacing, suitable for operation between -40°C and 105°C.
PackageDIP
MountingThrough Hole
Power65mW
Quick Jump:
Technical Specifications
Broadcom HDSP-B42G technical specifications.
General
Package/Case
DIP
Color
Green
Depth
19.1mm
Display Type
Segment
Forward Current
10mA
Height
0.752inch
Illumination Color
Green
Lead Pitch
2.54mm
Length
51.2mm
Luminous Intensity
3.2mcd
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Power Dissipation
65mW
Mount
Through Hole
Number of Characters
4
Number of Elements
25
Package Quantity
10
Packaging
Rail/Tube
Power Dissipation
65mW
Reach SVHC Compliant
No
Reverse Voltage
3V
RoHS Compliant
Yes
Row Spacing
15.24mm
Viewing Area (height)
14.2mm
Viewing Area Length
7.8mm
Width
2.016inch
Compliance
RoHS
Compliant
Datasheet
Broadcom HDSP-B42G Datasheet
Download the complete datasheet for Broadcom HDSP-B42G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

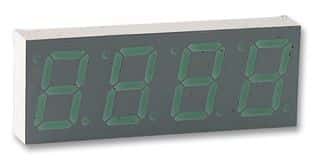

Product Images
