Broadcom
HFBR-1537Z
Transmitter, 640nm Min, 660nm Max, 125Mbps, Through Hole Mount, ROHS COMPLIANT PACKAGE
Capacitance60pF
MountingThrough Hole
Quick Jump:
Technical Specifications
Broadcom HFBR-1537Z technical specifications.
General
Capacitance
60pF
Fall Time
9ns
Height
18.8mm
Lead Free
Lead Free
Length
18.3mm
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Reverse Voltage (DC)
3V
Max Supply Voltage
2.4V
Min Supply Voltage
1.8V
Mount
Through Hole
Package Quantity
200
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Spectral Bandwidth
21nm
Wavelength
650nm
Width
12.2mm
Compliance
RoHS
Compliant
Datasheet
Broadcom HFBR-1537Z Datasheet
Download the complete datasheet for Broadcom HFBR-1537Z to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

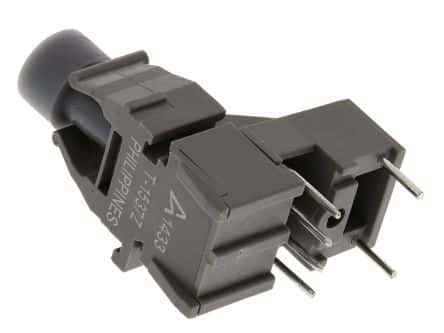

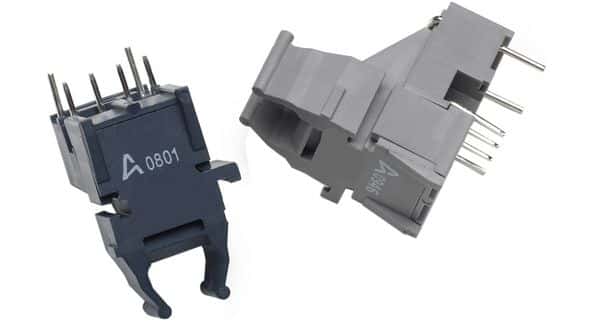

Product Images
