Single color surface mount LED emitter, featuring an orange illumination color with a colorless, diffused, circular lens. This component operates with a 20mA forward current, a 5V reverse voltage, and a power dissipation of 105mW. It offers a luminous intensity of 525mcd and a luminous flux of 0.25lm, with a narrow 15° viewing angle. The LED is housed in a T-3/4 plastic package with dimensions of 1.99mm length, 2.21mm width, and 2.92mm height, and is RoHS compliant.
PackageSMD/SMT
MountingSurface Mount
Power105mW
Quick Jump:
Technical Specifications
Broadcom HLMA-QL00-TU011 technical specifications.
General
Package/Case
SMD/SMT
Color
Orange
Depth
2.21mm
Forward Current
20mA
Height
2.92mm
Illumination Color
Orange
Lead Free
Lead Free
Length
1.99mm
Lens Color
Colorless
Lens Style
Diffused, Colorless, Circular
Lens Transparency
Clear
Luminous Flux
0.25lm
Luminous Intensity
525mcd
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Elements
1
Number of LEDs
1
Package Quantity
1500
Packaging
Tape and Reel
Power Dissipation
105mW
Radiation Hardening
No
Reverse Voltage
5V
RoHS Compliant
Yes
Viewing Angle
15°
Wavelength
590nm
Width
2.21mm
Compliance
RoHS
Compliant
Datasheet
Broadcom HLMA-QL00-TU011 Datasheet
Download the complete datasheet for Broadcom HLMA-QL00-TU011 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

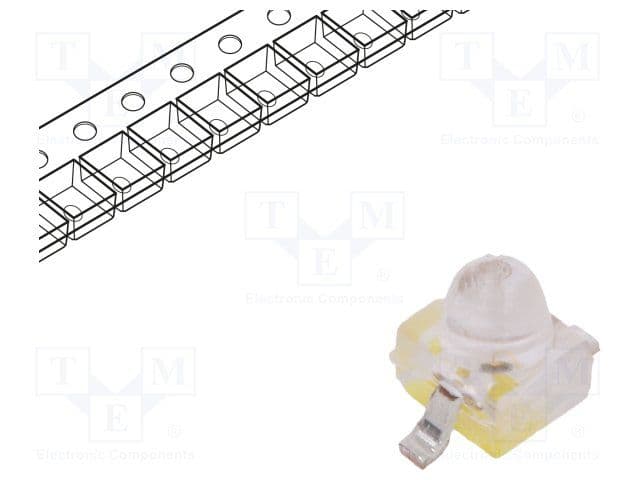

Product Images
