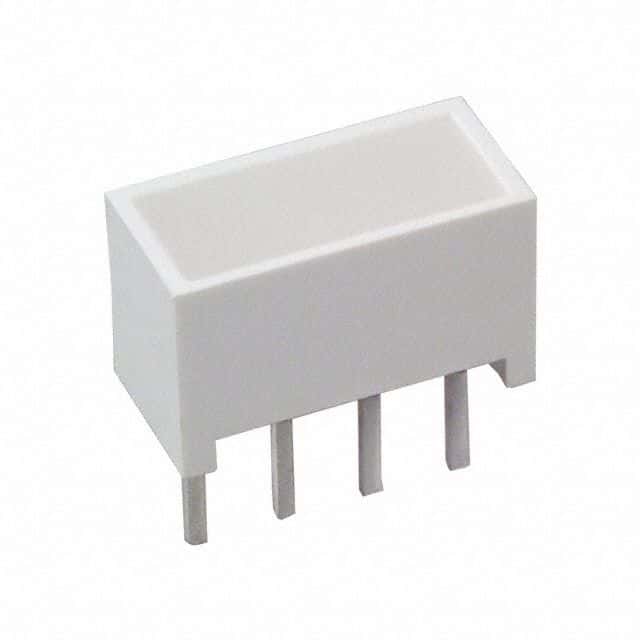

Uni-color red LED light bar featuring two elements in a 4-pin SIP package for through-hole mounting. Emitting red light at 635nm with a luminous intensity of 23mcd, this RoHS compliant component operates with a forward current of 20mA and a maximum forward voltage of 2V. It offers a wide operating temperature range from -40°C to 85°C and a reverse voltage rating of 6V. The diffused, domed, round lens measures 3mm, with overall dimensions of 10.16mm length, 8.89mm width, 4.95mm depth, and 3.81mm height.
PackageSIP
Current30mA
Voltage Rating2V
MountingThrough Hole
Quick Jump:
Technical Specifications
Broadcom HLMP-2300 technical specifications.
General
| Package/Case | SIP |
| Color | Red |
| Current | 30mA |
| Depth | 4.95mm |
| Forward Current | 20mA |
| Height | 3.81mm |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Length | 10.16mm |
| Lens Size | 3mm |
| Lens Style | Round, Domed, Diffused, Rectangular |
| Luminous Intensity | 23mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 4 |
| Number of Elements | 1 |
| Number of LEDs | 2 |
| Number of Segments | 1 |
| Package Quantity | 320 |
| Packaging | Rail/Tube |
| Power Dissipation | 135mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 6V |
| RoHS Compliant | Yes |
| Series | HLMP-2300 |
| Voltage Rating | 2V |
| Width | 8.89mm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HLMP-2300 Datasheet
Download the complete datasheet for Broadcom HLMP-2300 to view detailed technical specifications.
