Broadcom
HLMP-EG1B-Z10DD
Single Color LED, Red, Untinted, T-1 3/4, 5mm, ROHS COMPLIANT, PLASTIC PACKAGE-2
PackageRadial
MountingThrough Hole
Quick Jump:
Technical Specifications
Broadcom HLMP-EG1B-Z10DD technical specifications.
General
Package/Case
Radial
Color
Red
Forward Current
20mA
Height
12.64mm
Illumination Color
Red
Lens Color
Colorless
Lens Size
5mm
Lens Style
Clear, Round, Colorless, Circular
Lens Transparency
Clear
Luminous Flux
2.3lm
Luminous Intensity
16500mcd
Mount
Through Hole
Number of LEDs
1
Package Quantity
1
Packaging
Cut Tape
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Viewing Angle
15°
Wavelength
630nm
Compliance
RoHS
Compliant
Datasheet
Broadcom HLMP-EG1B-Z10DD Datasheet
Download the complete datasheet for Broadcom HLMP-EG1B-Z10DD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

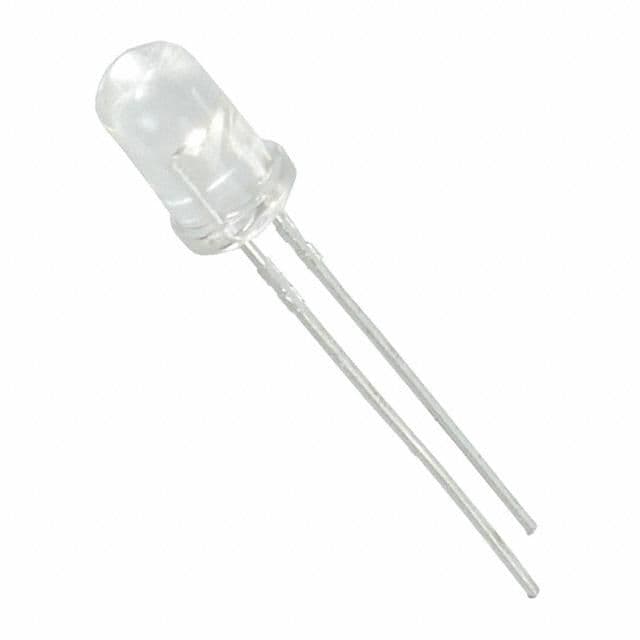

Product Images
