Technical Specifications
Broadcom HSME-A100-N82J1 technical specifications.
General
Package/Case
PLCC
Color
Green, Yellow
Forward Current
20mA
Height
2.1mm
Illumination Color
Green
Lead Free
Lead Free
Length
3.2mm
Lens Color
Colorless
Lens Style
Round, Circular
Lens Transparency
Clear
Luminous Intensity
90mcd
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of LEDs
1
Package Quantity
2000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Viewing Angle
120°
Wavelength
570nm
Width
2.8mm
Compliance
RoHS
Compliant
Datasheet
Broadcom HSME-A100-N82J1 Datasheet
Download the complete datasheet for Broadcom HSME-A100-N82J1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

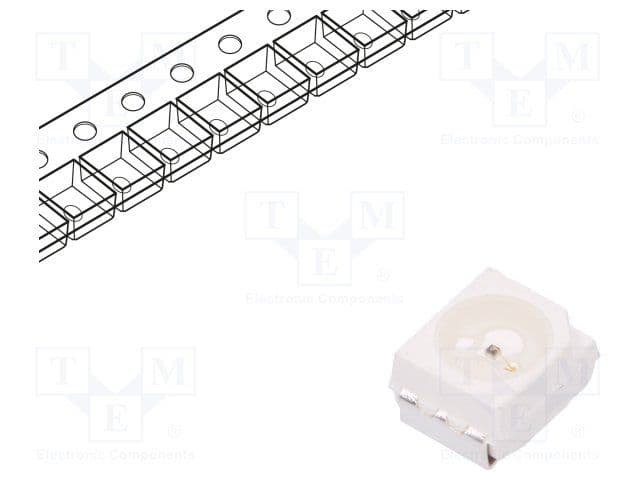

Product Images
