HSMU-A100-S00J1

Amber Yellow LED, 592nm, 320mcd, 20mA, 120°, SMT

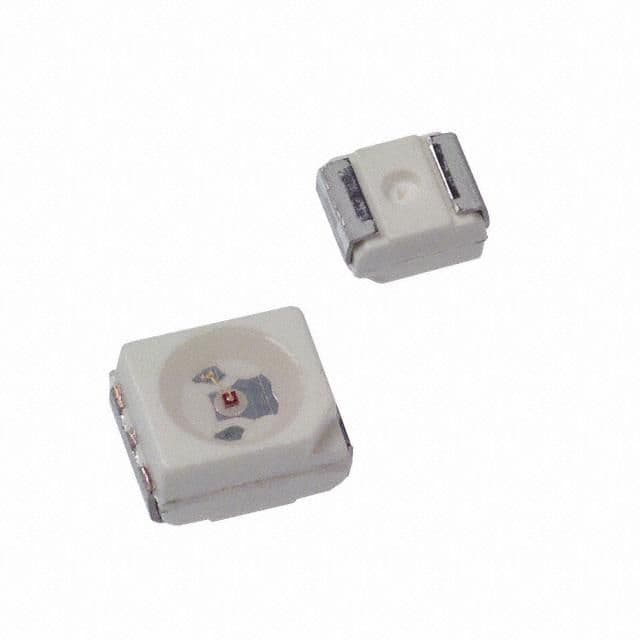

Single Color LED emitter featuring amber yellow illumination with a 592nm wavelength. This surface mount component utilizes a PLCC package with a 2.2mm footprint, offering a 120° viewing angle and 320mcd luminous intensity. Operating with a 20mA forward current and 5V reverse voltage, it boasts a wide temperature range from -55°C to 100°C and a power dissipation of 72mW. The clear, diffused lens style contributes to its overall performance.

PackagePLCC

MountingSurface Mount

Power72mW

Quick Jump:

Technical Specifications

Broadcom HSMU-A100-S00J1 technical specifications.

General

Package/Case	PLCC
Color	Orange, Yellow
Depth	2.8mm
Forward Current	20mA
Height	2.1mm
Illumination Color	Orange
Lead Free	Lead Free
Length	3.2mm
Lens Color	Colorless
Lens Style	Clear, Round, Circular, Flat, Diffused
Lens Transparency	Clear
Luminous Intensity	320mcd
Max Operating Temperature	100°C
Min Operating Temperature	-55°C
Mount	Surface Mount
Number of Elements	1
Number of LEDs	1
Package Quantity	1
Packaging	Tape and Reel
Power Dissipation	72mW
Radiation Hardening	No
Reach SVHC Compliant	No
Reverse Voltage	5V
RoHS Compliant	Yes
Viewing Angle	120°
Wavelength	592nm
Width	2.8mm
