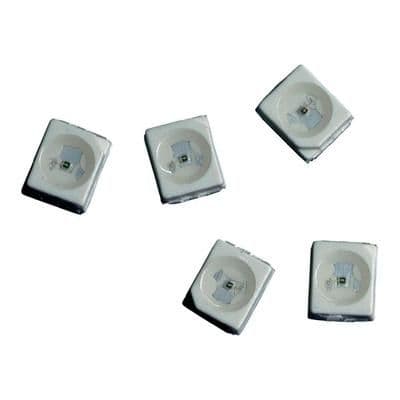

HSMW-A100-U40J1

White LED Emitter, SMT, 1125mcd, 120°, PLCC

Single color white LED emitter, surface mountable in a PLCC package. Features diffused, tinted, round lens with a 120° viewing angle. Operates with a 20mA forward current, 5V reverse voltage, and 114mW power dissipation. Correlated Color Temperature (CCT) is x=0.31/y=0.31. Dimensions: 3.2mm length, 2.8mm width, 2.1mm height, 2.8mm depth. Maximum operating temperature of 100°C.

PackagePLCC

MountingSurface Mount

Power114mW

Quick Jump:

Technical Specifications

Broadcom HSMW-A100-U40J1 technical specifications.

General

Package/Case	PLCC
Color	White
Correlated Color Temperature (CCT)	x=0.31/y=0.31
Depth	2.8mm
Forward Current	20mA
Height	2.1mm
Illumination Color	White
Length	3.2mm
Lens Color	Yellow
Lens Style	Diffused, Tinted, Round, Circular
Lens Transparency	Diffused
Luminous Intensity	1125mcd
Max Operating Temperature	100°C
Min Operating Temperature	-40°C
Max Power Dissipation	114mW
Mount	Surface Mount
Number of Elements	1
Number of LEDs	1
Package Quantity	2000
Packaging	Tape and Reel
Power Dissipation	114mW
Radiation Hardening	No
Reach SVHC Compliant	No
Reverse Voltage	5V
RoHS Compliant	Yes
Viewing Angle	120°
Width	2.8mm
