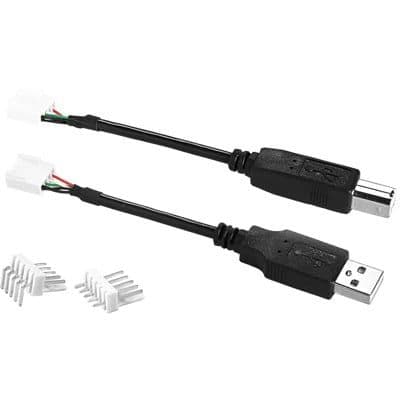

4-position, 4-contact shielded USB Type B plug to 4-position power/USB plug jumper cable. Features a 100mm lead length with 28AWG round PVC USB wire. Offers a 1A current rating and 30V AC max voltage rating, with gold-plated copper alloy contacts. Constructed from UL94 V-0 rated polycarbonate in black, operating between 0°C and 70°C.
Current Rating1A
Quick Jump:
Technical Specifications
Bulgin 14194 technical specifications.
General
Color
Black
Connector Type A
USB, Plug
Connector Type B
Power, USB, Plug
Contact Material
Copper Alloy
Contact Plating
Gold
Current Rating
1A
Flammability Rating
UL94 V-0
Gender
Male
Insulation Color
Black
Lead Length
100mm
Length
1m
Material
Polycarbonate
Max Current Rating
1A
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Voltage Rating (AC)
30V
Number of Conductors
4
Number of Contacts
4
Number of Positions
4
Package Quantity
10
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Buccaneer®
Shielding
Shielded
Termination
Crimp
Wire/Cable Gauge
28AWG
Wire/Cable Type
Round, PVC, USB
Compliance
RoHS
Compliant
Datasheet
Bulgin 14194 Datasheet
Download the complete datasheet for Bulgin 14194 to view detailed technical specifications.
