Mains power connector featuring a 3-position, male configuration with solder terminals. Rated for 10A and 250VAC, this straight, black connector offers a UL94 V-0 flammability rating and includes fuse functionality. Designed for panel mounting with a snap-in mechanism, it operates within a temperature range of -40°C to 70°C. Contact plating is tin, and the component is RoHS compliant.
FrequencyN/A
PackageModule
Voltage Rating250V
Current Rating10A
Quick Jump:
Technical Specifications
Bulgin PF0011/15/63 technical specifications.
General
Package/Case
Module
Color
Black
Contact Plating
Tin
Current Rating
10A
Flammability Rating
UL94 V-0
Fuse
Yes
Gender
Male
Max Current Rating
10A
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Mount
Panel, Snap in
Number of Contacts
3
Number of Ports
1
Number of Positions
3
Operating Frequency
N/A
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PF
Termination
Solder
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Bulgin PF0011/15/63 Datasheet
Download the complete datasheet for Bulgin PF0011/15/63 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

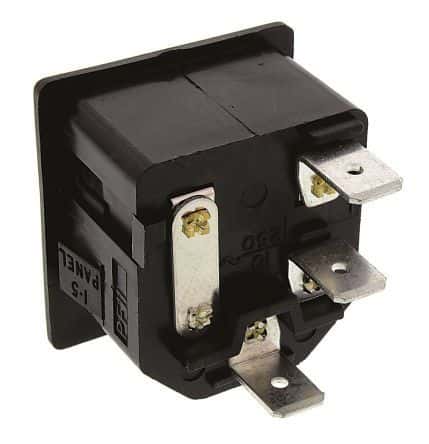

Product Images
