Technical Specifications
Bulgin PF0011/30/63 technical specifications.
General
| Approvals | UL, CSA, VDE, ENEC |
| Package/Case | Module |
| Contact Plating | Nickel |
| Current Rating | 10A |
| Flammability Rating | UL94 V-0 |
| Fuse | Yes |
| Max Current Rating | 10A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Panel, Snap in |
| Number of Contacts | 3 |
| Number of Ports | 1 |
| Number of Positions | 3 |
| Operating Frequency | N/A |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Panel Thickness | 0.118inch |
| RoHS Compliant | Yes |
| Series | PF |
| Termination | Quick Connect |
| Voltage Rating (AC) | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Bulgin PF0011/30/63 Datasheet
Download the complete datasheet for Bulgin PF0011/30/63 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

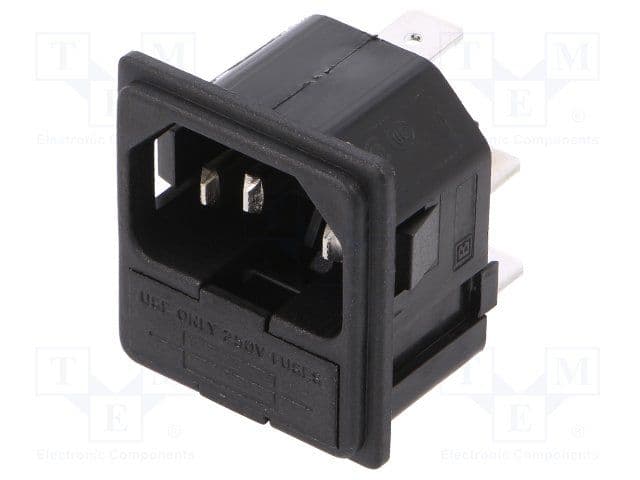

Product Images
