Mains power connector featuring a 10A current rating and 250V AC voltage rating. This male, right-angle plug offers solder termination for three positions and includes a fuse. Constructed with UL94 V-0 flammability rating and a black module housing, it supports through-hole and panel mounting with flanges. Operating temperature range is -20°C to 70°C.
FrequencyN/A
PackageModule
Voltage Rating250V
Current Rating10A
Quick Jump:
Technical Specifications
Bulgin PF0030/PC technical specifications.
General
Package/Case
Module
Color
Black
Current Rating
10A
Depth
33.2mm
Flammability Rating
UL94 V-0
Fuse
Yes
Gender
Male
Lead Free
Lead Free
Length
44mm
Max Current Rating
10A
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Voltage Rating (AC)
250V
Mount
Through Hole, Panel, Flanges
Number of Contacts
3
Number of Ports
1
Number of Positions
3
Operating Frequency
N/A
Orientation
Right Angle
Package Quantity
100
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PF
Termination
Solder
Voltage Rating
250V
Voltage Rating (AC)
250V
Compliance
RoHS
Compliant
Datasheet
Bulgin PF0030/PC Datasheet
Download the complete datasheet for Bulgin PF0030/PC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

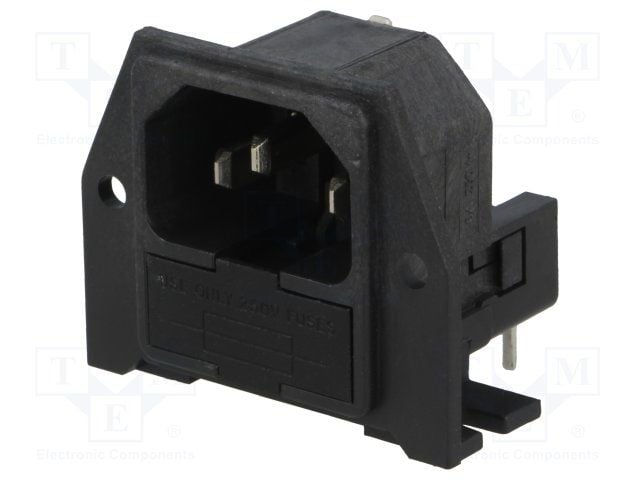

Product Images
