USB 2.0 cable assembly, 2 meters in length, featuring male USB Type B to male USB Type A connectors. This shielded, black PVC jacketed cable offers 4 conductors and 4 positions with nickel plating. Rated for 1A current and 30V, it operates between 0°C and 70°C, with a UL94 V-0 flammability rating and IP68 protection.
Voltage Rating30V
Current Rating1A
Quick Jump:
Technical Specifications
Bulgin PX0840/B/2M00 technical specifications.
General
Color
Black
Connector Type A
USB, Plug
Connector Type B
USB, Plug
Current Rating
1A
Diameter
38.1mm
Flammability Rating
UL94 V-0
Gender
Male to Male
Jacket Material
PVC
Lead Free
Lead Free
Lead Length
2m
Length
2m
Material
Steel
Max Current Rating
1A
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Voltage Rating (AC)
30V
Number of Conductors
4
Number of Contacts
4
Number of Poles
4
Number of Positions
4
Packaging
Bulk
Plating
Nickel
Ratings
IP68
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Buccaneer®
Shielding
Shielded
Termination
Crimp
USB Standard
USB 2.0
Voltage Rating
30V
Voltage Rating (AC)
30V
DC Rated Voltage
30V
Wire/Cable Gauge
28AWG
Wire/Cable Type
USB, PVC
Compliance
RoHS
Compliant
Datasheet
Bulgin PX0840/B/2M00 Datasheet
Download the complete datasheet for Bulgin PX0840/B/2M00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

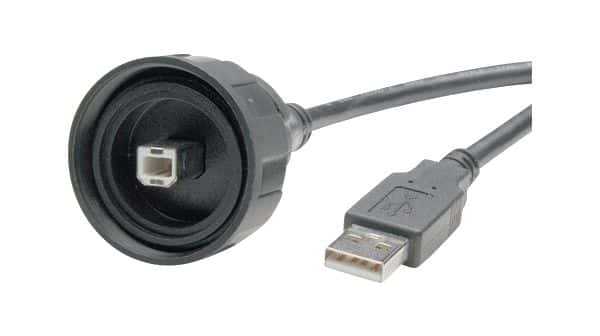

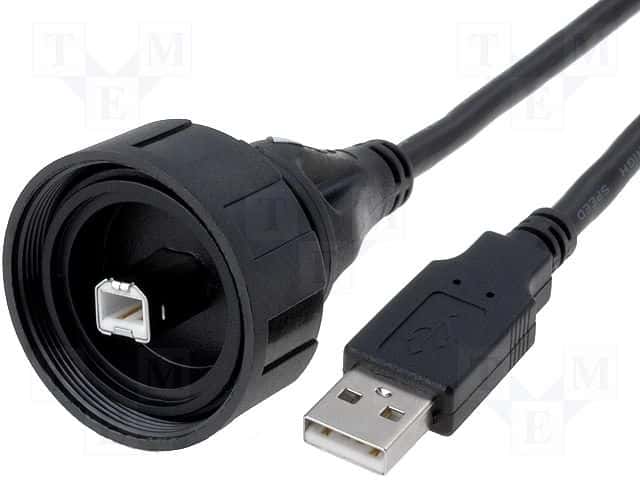

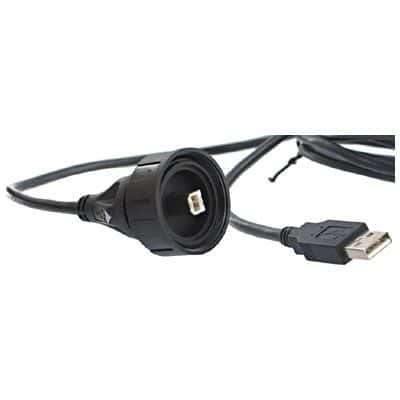

Product Images
