Sealed, male circular plug connector featuring 7 male pin contacts with nickel-plated brass construction. Rated for 32A and 600V, with a maximum operating temperature of 85°C and a minimum of -40°C. This free-hanging, straight orientation connector utilizes screw termination and offers IP68, waterproof, and dust-tight ratings. Body constructed from Nylon and Polyamide, with UL94 V-0 flammability rating.
Voltage Rating600V
Current Rating32A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Bulgin PXA911/07/P technical specifications.
General
Approvals
UL, CSA, VDE
Body Material
Nylon, Polyamide
Contact Gender
Male
Contact Material
Brass
Contact Plating
Nickel
Contact Type
Pin
Current Rating
32A
Flammability Rating
UL94 V-0
Gender
Male
Max Current Rating
32A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
430.43kV
Mount
Free Hanging, Cable
Number of Contacts
7
Number of Ports
1
Number of Positions
7
Orientation
Straight
Package Quantity
10
Packaging
Bulk
Plating
Nickel
Primary Type
Sealed
Ratings
IP68, Waterproof, Dust Tight
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Buccaneer® 900
Strain Relief
Yes (With)
Termination
Screw
Voltage Rating
600V
Weight
5.832oz
Compliance
RoHS
Compliant
Datasheet
Bulgin PXA911/07/P Datasheet
Download the complete datasheet for Bulgin PXA911/07/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

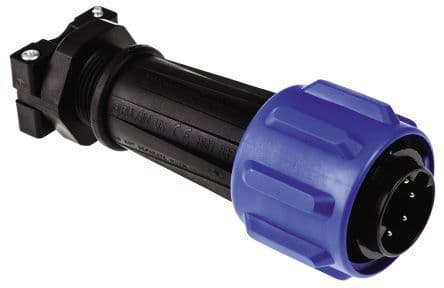

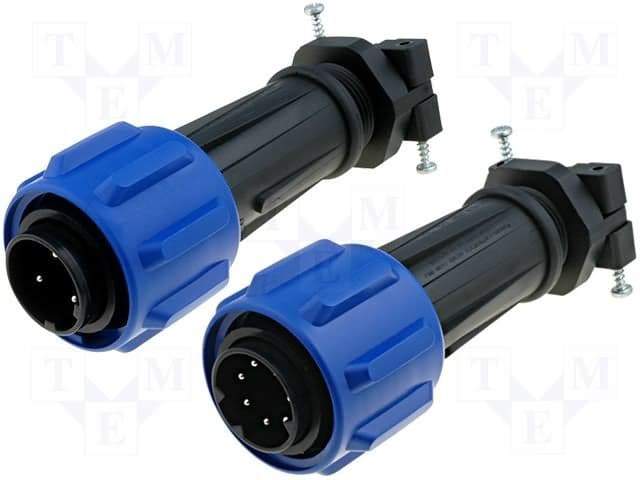

Product Images
