Technical Specifications
Bulgin PXA921/02/S technical specifications.
General
Contact Gender
Female
Contact Material
Brass
Contact Plating
Nickel
Depth
46mm
Flammability Rating
UL94 V-0
Length
146mm
Max Current Rating
32A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
600.6kV
Mount
Cable
Number of Contacts
2
Number of Ports
1
Number of Positions
2
Orientation
Straight
Package Quantity
10
Radiation Hardening
No
Ratings
IP68
RoHS Compliant
Yes
Series
Buccaneer 900
Strain Relief
Yes (With)
Termination
Screw
Compliance
RoHS
Compliant
Datasheet
Bulgin PXA921/02/S Datasheet
Download the complete datasheet for Bulgin PXA921/02/S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

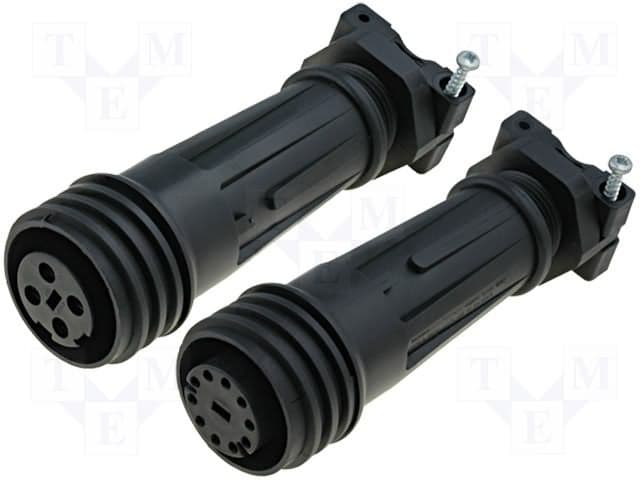

Product Images
