3-position, straight, female receptacle circular connector for cable mounting. Features brass contacts with nickel plating, rated for 32A and 600V AC/DC. Constructed with a black nylon shell and UL94 V-0 flammability rating, this sealed connector offers IP68, waterproof, water-resistant, and dust-tight protection. Operates within a temperature range of -40°C to 85°C and includes strain relief with screw termination.
Voltage Rating600V
Current Rating32A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Bulgin PXA921/03/S technical specifications.
General
Color
Black
Contact Finish - Mating
NICKEL
Contact Gender
Female
Contact Material
Brass
Contact Plating
Nickel
Current Rating
32A
Flammability Rating
UL94 V-0
Gender
Receptacle
Max Current Rating
32A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
600.6kV
Mount
Free Hanging, Cable
Number of Contacts
3
Number of Ports
1
Number of Positions
3
Orientation
Straight
Package Quantity
10
Packaging
Bulk
Primary Type
Sealed
Ratings
IP68, Waterproof, Water Resistant, Dust Tight
RoHS Compliant
Yes
Series
Buccaneer® 900
Shell Material
Nylon
Shielding
Unshielded
Strain Relief
Yes (With)
Termination
Screw
Voltage Rating
600V
Voltage Rating (AC)
600V
Compliance
RoHS
Compliant
Datasheet
Bulgin PXA921/03/S Datasheet
Download the complete datasheet for Bulgin PXA921/03/S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

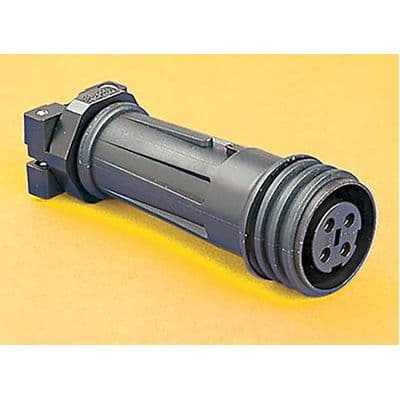

Product Images
