This 5-position, 5-contact circular connector features a straight, cable-mount orientation with screw termination. Constructed with a black nylon shell and brass contacts plated with nickel, it offers a 32A current rating and a 600V voltage rating (AC/DC). Rated IP68, it is waterproof, water-resistant, and dust-tight, with a UL94 V-0 flammability rating. Operating within a temperature range of -40°C to 85°C, this unshielded connector includes strain relief and is RoHS compliant.
Voltage Rating600V
Current Rating32A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Bulgin PXA921/05/P technical specifications.
General
Color
Black
Contact Finish - Mating
NICKEL
Contact Gender
Male
Contact Material
Brass
Contact Plating
Nickel
Current Rating
32A
Flammability Rating
UL94 V-0
Max Current Rating
32A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
600.6kV
Mount
Free Hanging, Cable
Number of Contacts
5
Number of Ports
1
Number of Positions
5
Orientation
Straight
Package Quantity
10
Packaging
Bulk
Ratings
IP68, Waterproof, Water Resistant, Dust Tight
RoHS Compliant
Yes
Series
Buccaneer® 900
Shell Material
Nylon
Shielding
Unshielded
Strain Relief
Yes (With)
Termination
Screw
Voltage Rating
600V
Voltage Rating (AC)
600V
Compliance
RoHS
Compliant
Datasheet
Bulgin PXA921/05/P Datasheet
Download the complete datasheet for Bulgin PXA921/05/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

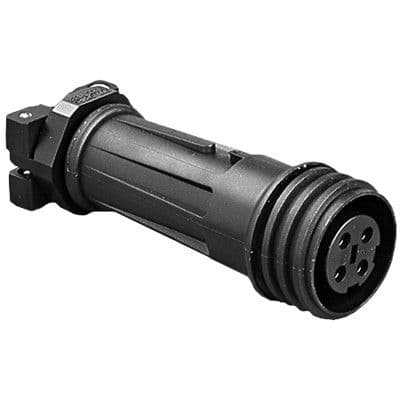

Product Images
