10-position, male circular connector with screw termination for cable mounting. Features brass contacts with nickel plating, rated for 10A and 250V. Operates within a temperature range of -40°C to 85°C and boasts IP68, waterproof, and dust-tight ratings. This sealed, straight orientation connector includes strain relief and is UL94 V-0 flammability rated.
Voltage Rating250V
Current Rating10A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Bulgin PXA921/10/P technical specifications.
General
Contact Gender
Male
Contact Material
Brass
Contact Plating
Nickel
Current Rating
10A
Flammability Rating
UL94 V-0
Max Current Rating
10A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
250.25kV
Mount
Free Hanging, Cable
Number of Contacts
10
Number of Ports
1
Number of Positions
10
Orientation
Straight
Package Quantity
10
Packaging
Bulk
Primary Type
Sealed
Ratings
IP68, Waterproof, Dust Tight
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Buccaneer® 900
Strain Relief
Yes (With)
Termination
Screw
Voltage Rating
250V
Compliance
RoHS
Compliant
Datasheet
Bulgin PXA921/10/P Datasheet
Download the complete datasheet for Bulgin PXA921/10/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

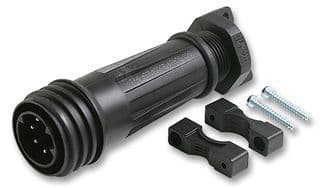

Product Images
