Current Rating8A
MountingDIN Rail
Quick Jump:
Technical Specifications
Carlo Gavazzi DPC01DM48 technical specifications.
General
| Approvals | UL, CSA, CE |
| Coil Voltage (AC) | 480V |
| Contact Current Rating | 8A |
| Contact Material | Tin, Silver |
| Current Rating | 8A |
| Height | 83.5mm |
| Length | 45mm |
| Max Current Rating | 8A |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 250V |
| Mount | DIN Rail |
| Operating Supply Voltage | 480V |
| Output Type | RELAY |
| Ratings | IP20 |
| Reach SVHC Compliant | No |
| Series | DPC01 |
| Termination | Screw |
| Throw Configuration | SPDT, DPDT |
| Voltage Rating (AC) | 10.417V |
| Weight | 220g |
| Width | 99.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Carlo Gavazzi DPC01DM48 Datasheet
Download the complete datasheet for Carlo Gavazzi DPC01DM48 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

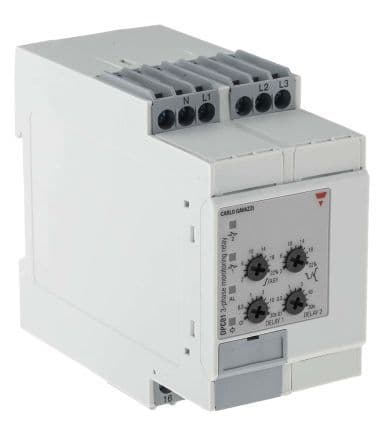

Product Images
