Cherry
DC1B-A1RC

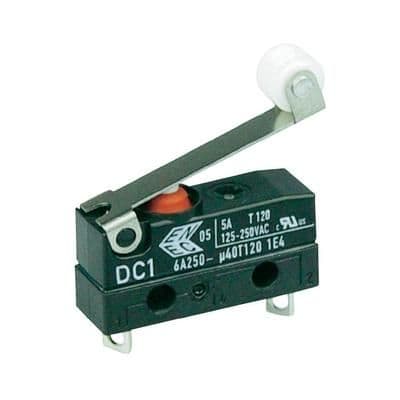

Microswitch 250 Vac 6 A 1 x On/(Off) Cherry Switches DC1B-A1RC IP67 momentary 1 pc(s)
MountingSolder
Quick Jump:
Technical Specifications
Cherry DC1B-A1RC technical specifications.
General
Actuator Type
ROLLER LEVER
Contact Current Rating
6A
Contact Material
Silver
Contact Type
1 breaker
Max Operating Temperature
120°C
Min Operating Temperature
-40°C
Mount
Solder
Operating Force
0.78N
Ratings
IP67
Termination
Solder
Throw Configuration
SPST
Compliance
RoHS
Compliant
Datasheet
Cherry DC1B-A1RC Datasheet
Download the complete datasheet for Cherry DC1B-A1RC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
