Cherry
DC3C-L1AA
Switch Snap Action N.O./N.C. SPDT Button Quick Connect 0.1A 250VAC 30VDC 1.96N Screw Mount
Package100
MountingScrew
Quick Jump:
Technical Specifications
Cherry DC3C-L1AA technical specifications.
General
Actuator Material
Polybutylene
Package/Case
100
Contact Current Rating
100mA
Contact Material
Gold
Contact Type
1 change-over
Depth
6.5mm
Flammability Rating
UL94 V-0
Height
10.05mm
Length
20mm
Max Current Rating
100mA
Max Operating Temperature
120°C
Mechanical Life
1000000Cycles
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
30V
Mount
Screw
Operating Force
1.96N
Orientation
Straight
RoHS Compliant
Yes
Termination
Quick Connect
Throw Configuration
SPDT
Width
6.5mm
Compliance
RoHS
Compliant
Datasheet
Cherry DC3C-L1AA Datasheet
Download the complete datasheet for Cherry DC3C-L1AA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

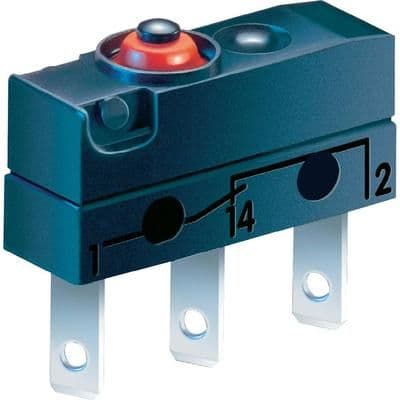

Product Images
