Technical Specifications

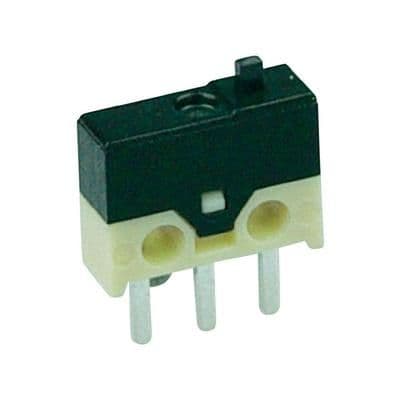

Cherry DH2C-C4AA technical specifications.
General
Contact Current Rating
500mA
Contact Material
Brass, Gold, Silver
Contact Plating
Gold
Contact Type
1 change-over
Current Rating
500mA
Electrical Life
30000Cycles
Max Operating Temperature
70°C
Max Voltage Rating (DC)
30V
Mechanical Life
50000Cycles
Min Operating Temperature
-25°C
Mount
Through Hole
Operating Force
90gf
Orientation
Straight
Packaging
Bulk
Ratings
IP40
RoHS Compliant
Yes
Series
DH
Switch Function
On-Mom
Termination
PC Pin
Throw Configuration
SPDT
Voltage Rating (AC)
20V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Cherry DH2C-C4AA Datasheet
Download the complete datasheet for Cherry DH2C-C4AA to view detailed technical specifications.
