Technical Specifications
Conec 15-000643 technical specifications.
General
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Type | Signal |
| Dielectric Material | PBT |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Panel |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | No |
| Termination | Solder |
| Wire/Cable Gauge | 20AWG |
Compliance
| RoHS | Not Compliant |
Datasheet
Conec 15-000643 Datasheet
Download the complete datasheet for Conec 15-000643 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

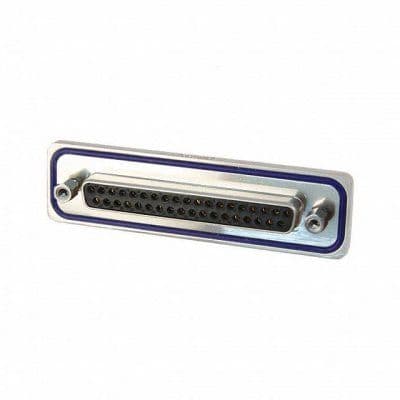

Product Images
