Technical Specifications
Conec 15-002243 technical specifications.
General
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Type | Signal |
| Dielectric Material | PBT |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, Edge, Board |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Package Quantity | 25 |
| Packaging | Bulk |
| Plating | ZINC DIE CAST |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | No |
| Termination | Solder |
Compliance
| RoHS | Not Compliant |
Datasheet
Conec 15-002243 Datasheet
Download the complete datasheet for Conec 15-002243 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

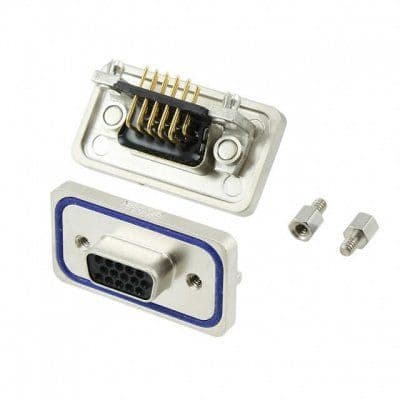

Product Images
