9-position, 2-row female D-Subminiature socket connector with straight, through-hole mounting. Features copper alloy contacts with gold plating for signal transmission, rated for 7.5A and 125V max supply voltage. Constructed with a black PBT dielectric, exhibiting UL94 V-0 flammability rating and an operating temperature range of -55°C to 125°C. This IP20 rated, RoHS compliant component is designed for solder termination.
Voltage Rating125V
Current Rating7.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Conec 164A16669X technical specifications.
General
Color
Black
Contact Material
Copper Alloy
Contact Plating
Gold
Contact Type
Signal
Current Rating
7.5A
Depth
12.93mm
Dielectric Material
PBT
Flammability Rating
UL94 V-0
Gender
Female
Length
31.19mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
125V
Mount
Through Hole
Number of Ports
1
Number of Positions
9
Number of Rows
2
Orientation
Straight
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Ratings
IP20
RoHS Compliant
Yes
Series
164A
Termination
Solder
Voltage Rating
125V
Compliance
RoHS
Compliant
Datasheet
Conec 164A16669X Datasheet
Download the complete datasheet for Conec 164A16669X to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

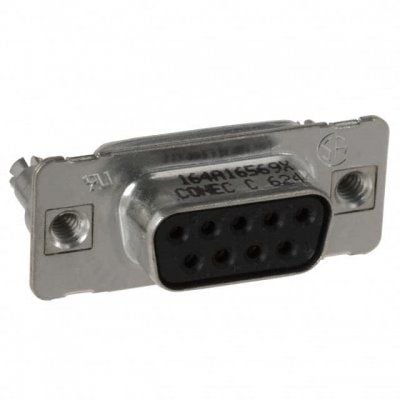

Product Images
