25-position, 2-row female D-subminiature connector with straight, through-hole mounting and solder termination. Features copper alloy contacts with gold plating, rated for 7.5A current and 125V voltage. Dielectric material is PBT with a UL94 V-0 flammability rating. Operating temperature range is -55°C to 125°C.
Voltage Rating125V
Current Rating7.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Conec 164A16689X technical specifications.
General
Color
Black
Contact Material
Copper Alloy
Contact Plating
Gold
Contact Type
Signal
Current Rating
7.5A
Depth
12.93mm
Dielectric Material
PBT
Flammability Rating
UL94 V-0
Gender
Female
Length
53.42mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
125V
Mount
Through Hole
Number of Ports
1
Number of Positions
25
Number of Rows
2
Orientation
Straight
Packaging
Tray
Radiation Hardening
No
Ratings
IP20
RoHS Compliant
Yes
Series
164A
Termination
Solder
Voltage Rating
125V
Compliance
RoHS
Compliant
Datasheet
Conec 164A16689X Datasheet
Download the complete datasheet for Conec 164A16689X to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

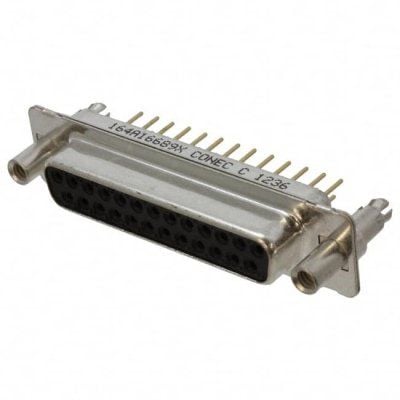

Product Images
