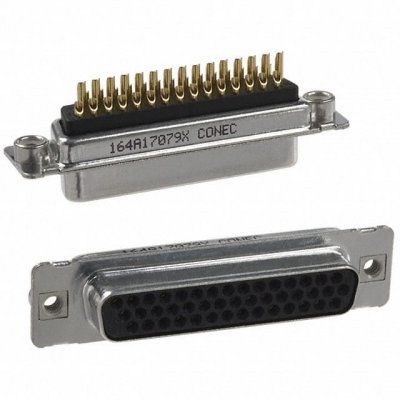

44-position, 3-row D-Subminiature receptacle with straight orientation and solder cup termination. Features copper alloy contacts with gold plating for signal transmission, a black PBT dielectric, and a UL94 V-0 flammability rating. Rated for 3A current and 60V maximum supply voltage, with an operating temperature range of -55°C to 125°C. This free-hanging connector offers IP20 protection and is lead-free.
Voltage Rating60V
Current Rating3A
MountingFree Hanging
Quick Jump:
Technical Specifications
Conec 164A17079X technical specifications.
General
Color
Black
Contact Material
Copper Alloy
Contact Plating
Gold
Contact Type
Signal
Current Rating
3A
Dielectric Material
PBT
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Black
Lead Free
Lead Free
Length
53.42mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
60V
Mount
Free Hanging
Number of Ports
1
Number of Positions
44
Number of Rows
3
Orientation
Straight
Packaging
Tray
Plating
Tin
Ratings
IP20
Series
164A
Termination
Solder
Voltage Rating
60V
Width
12.9mm
Wire/Cable Gauge
22AWG
Compliance
RoHS
Not Compliant
