PackageMetal
Voltage Rating100V
Current Rating1.2A
MountingPanel, Bulkhead, Front Side Nut, Rear Side Nut
Quick Jump:
Technical Specifications
Conec 17-10011 technical specifications.
General
Package/Case
Metal
Color
Black
Contact Material
Bronze
Contact Plating
Gold
Current Rating
1.2A
Flammability Rating
UL94 V-0
Housing Color
Black
Length
34.5mm
Max Current Rating
1.2A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
100V
Mount
Panel, Bulkhead, Front Side Nut, Rear Side Nut
Number of Ports
1
Orientation
Straight
Package Quantity
100
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Shielding
Shielded
Termination
Through Hole
Voltage Rating
100V
Compliance
RoHS
Compliant
Datasheet
Conec 17-10011 Datasheet
Download the complete datasheet for Conec 17-10011 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

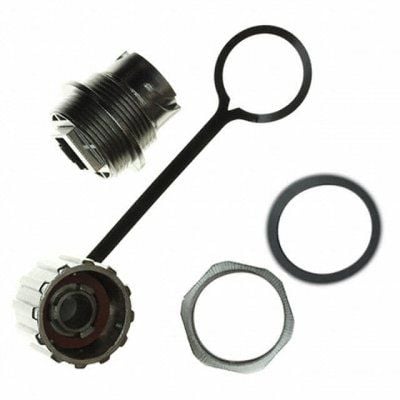

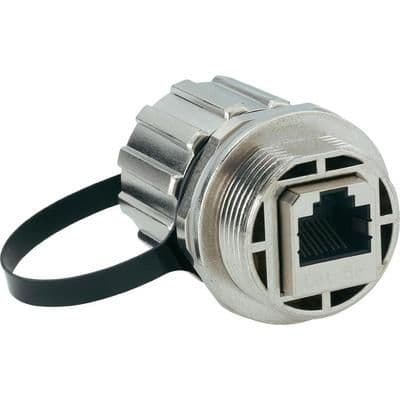

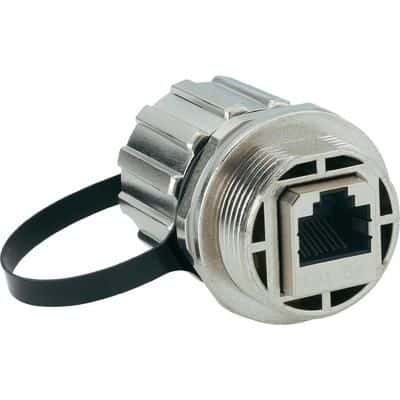

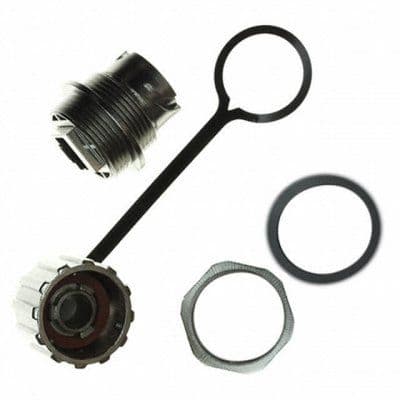

Product Images
