Rectangular connector adapter featuring a straight, female orientation with 8 loaded positions. This adapter boasts a 1.2A current rating and 100V voltage rating, with gold-plated bronze contacts for reliable connectivity. Its black housing is constructed from UL94 V-0 rated material, ensuring a flammability rating of V-0. Designed for panel, bulkhead, front side nut, and rear side nut mounting, this RoHS compliant component offers IP67, waterproof, and dust-tight protection. Operating within a temperature range of -40°C to 85°C, it utilizes through-hole termination.
Voltage Rating100V
Current Rating1.2A
MountingPanel, Bulkhead, Front Side Nut, Rear Side Nut
Quick Jump:
Technical Specifications
Conec 17-10019 technical specifications.
General
Color
Black
Contact Material
Bronze
Contact Plating
Gold
Current Rating
1.2A
Depth
34mm
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Black
Length
36.18mm
Max Current Rating
1.2A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Panel, Bulkhead, Front Side Nut, Rear Side Nut
Number of Ports
1
Number of Positions Loaded
8
Orientation
Straight
Package Quantity
10
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Shielding
Unshielded
Termination
Through Hole
Voltage Rating
100V
Compliance
RoHS
Compliant
Datasheet
Conec 17-10019 Datasheet
Download the complete datasheet for Conec 17-10019 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

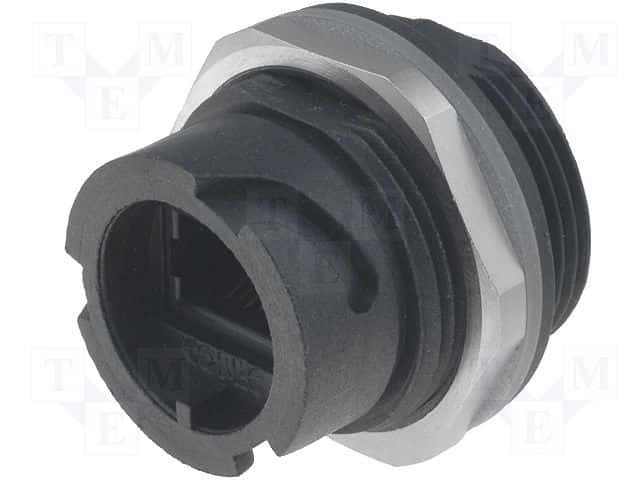

Product Images
