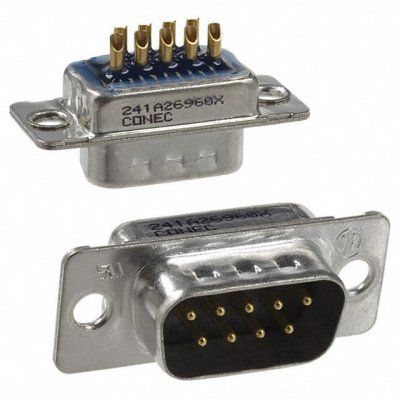

9-position D-Subminiature plug connector with straight orientation and solder termination. Features copper alloy contacts with gold plating, rated for 7.5A current and 100V voltage. The black thermoplastic housing has a UL94 V-0 flammability rating and IP20 protection. Designed for free-hanging mounting, this male connector accepts 20AWG wire and operates within a -25°C to 105°C temperature range.
Voltage Rating100V
Current Rating7.5A
MountingFree Hanging
Quick Jump:
Technical Specifications
Conec 241A26960X technical specifications.
General
Color
Black
Contact Material
Copper Alloy
Contact Plating
Gold
Contact Type
Signal
Current Rating
7.5A
Depth
16.62mm
Dielectric Material
Thermoplastic
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Lead Free
Lead Free
Length
31.19mm
Max Operating Temperature
105°C
Min Operating Temperature
-25°C
Max Supply Voltage (DC)
100V
Mount
Free Hanging
Number of Ports
1
Number of Positions
9
Number of Rows
2
Orientation
Straight
Packaging
Tray
Ratings
IP20
RoHS Compliant
Yes
Series
241A
Termination
Solder
Voltage Rating
100V
Width
12.9mm
Wire/Cable Gauge
20AWG
Compliance
RoHS
Compliant
