Modular and compact programmable logic controller (PLC) featuring an LCD display. Offers 12 digital inputs and 8 relay outputs, with a response time of 50ms. Operates on 100-240VAC supply voltage and accepts 100-240V input voltage. Designed for chassis, DIN rail, or panel mounting with screw termination. Dimensions include a width of 125mm, length of 107.6mm, depth of 70mm, and size of 68mm. Rated IP40 and IP20, with UL and CSA approvals.
Package100
Storage68mm
MountingChassis Mount, DIN Rail, Panel
Quick Jump:
Technical Specifications
Crouzet 88970053 technical specifications.
General
| Approvals | UL, CSA |
| Package/Case | 100 |
| Depth | 70mm |
| Display Type | LCD |
| Input Type | DIGITAL |
| Length | 107.6mm |
| Max Input Voltage | 240V |
| Max Operating Temperature | 55°C |
| Max Supply Voltage | 240V |
| Memory Size | 368b |
| Min Input Voltage | 100V |
| Min Operating Temperature | -20°C |
| Min Supply Voltage | 100V |
| Mount | Chassis Mount, DIN Rail, Panel |
| Number of Inputs | 12 |
| Number of Outputs | 8 |
| Output Type | RELAY |
| Package Quantity | 1 |
| Ratings | IP40, IP20 |
| Reach SVHC Compliant | No |
| Response Time | 50ms |
| Series | Millenium 3, CD20 |
| Size | 68mm |
| Termination | Screw |
| Width | 125mm |
Compliance
| RoHS | Compliant |
Datasheet
Crouzet 88970053 Datasheet
Download the complete datasheet for Crouzet 88970053 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

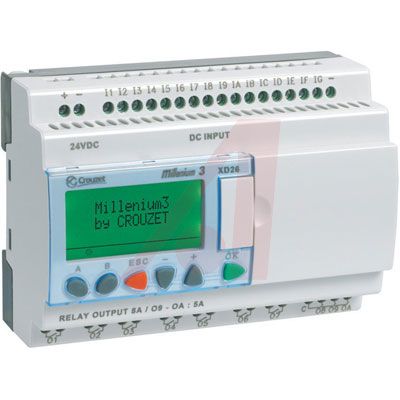

Product Images
