Modular compact programmable logic controller featuring 8 digital inputs and 4 relay outputs. Offers a 240VAC operating supply voltage and 12A output current. Equipped with an LCD display and 368b memory size, this controller boasts a 5ms response time. Designed for DIN rail, chassis, or panel mounting with screw termination. Operating temperature range from -20°C to 70°C, with IP40 and IP20 ratings.
PackageModule
Storage57.5mm
MountingDIN Rail, Chassis Mount, Panel
Quick Jump:
Technical Specifications
Crouzet 88974023 technical specifications.
General
| Approvals | UL, CSA, CE |
| Package/Case | Module |
| Depth | 67.5mm |
| Display Type | LCD |
| Input Type | DIGITAL |
| Length | 107.6mm |
| Manufacturer Series | Millenium 3 |
| Max Operating Temperature | 70°C |
| Mechanical Life | 10000000Cycles |
| Memory Size | 368b |
| Min Operating Temperature | -20°C |
| Mount | DIN Rail, Chassis Mount, Panel |
| Number of Inputs | 8 |
| Number of Outputs | 4 |
| Operating Supply Voltage | 240V |
| Output Current | 12A |
| Output Type | RELAY |
| Package Quantity | 1 |
| Ratings | IP40, IP20 |
| Response Time | 5ms |
| Series | Millenium 3, CB12 |
| Size | 57.5mm |
| Termination | Screw |
| Width | 71.2mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Crouzet 88974023 Datasheet
Download the complete datasheet for Crouzet 88974023 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

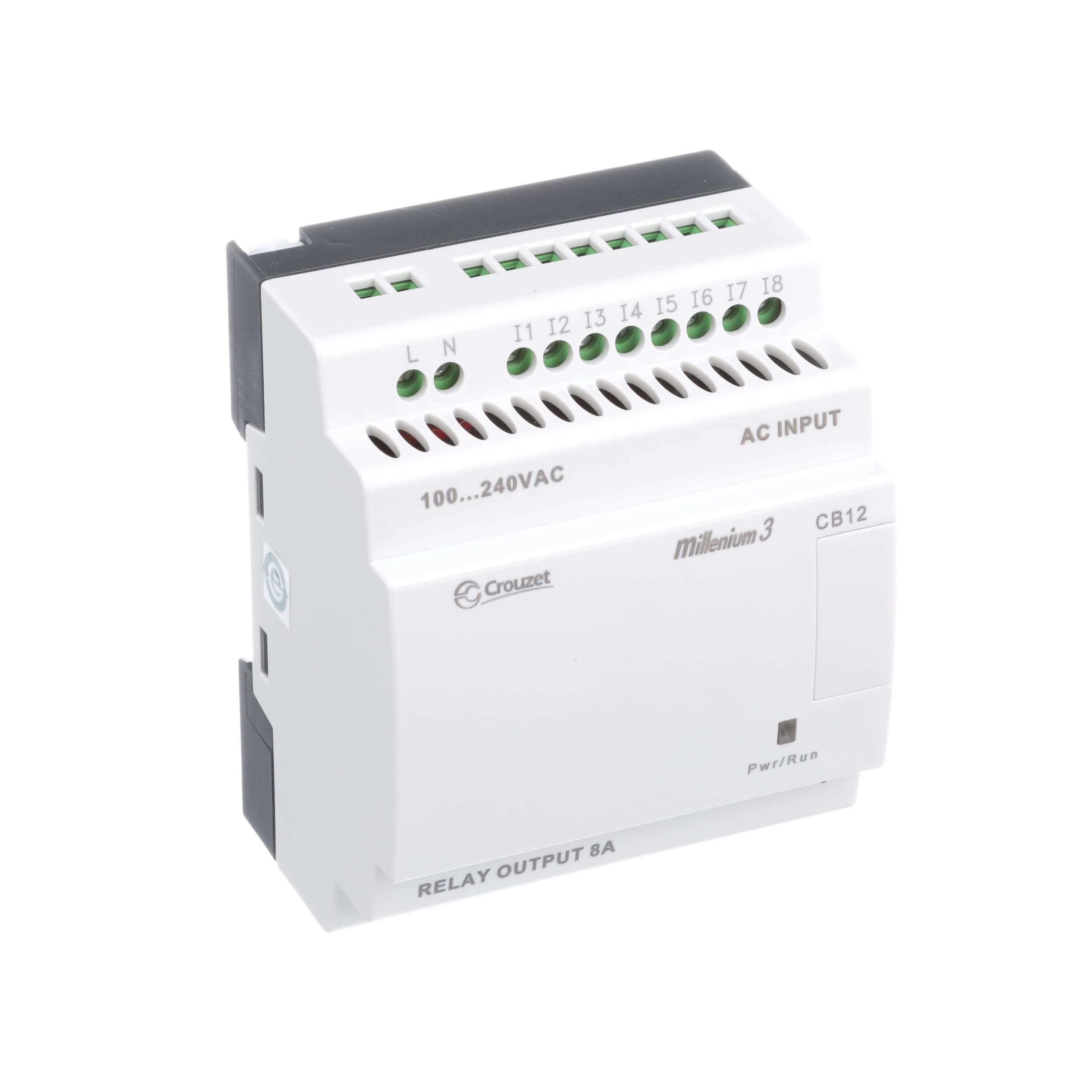

Product Images
