Technical Specifications
Crouzet 88974045 technical specifications.
General
| Approvals | UL, CSA, CE |
| Depth | 68mm |
| Display Type | LCD |
| Length | 107.6mm |
| Max Operating Temperature | 70°C |
| Mechanical Life | 10000000Cycles |
| Memory Size | 368b |
| Min Operating Temperature | -20°C |
| Mount | DIN Rail, Chassis Mount, Panel |
| Number of Inputs | 8 |
| Number of Outputs | 4 |
| Output Type | RELAY |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP40, IP20 |
| Response Time | 5ms |
| Series | Millenium 3, CD12 |
| Size | 58mm |
| Termination | Screw |
| Width | 71.2mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Crouzet 88974045 Datasheet
Download the complete datasheet for Crouzet 88974045 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

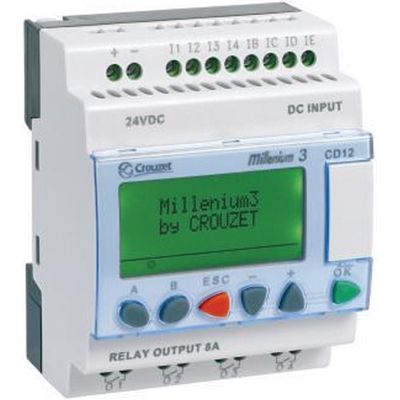

Product Images
