Modular compact PLC with 6 digital inputs and 4 relay outputs, featuring a 5ms response time and 12A output current. Operates on 240VAC supply, with an LCD display and 368b memory. Designed for industrial automation, it offers DIN rail, chassis, or panel mounting and operates within a -20°C to 70°C temperature range. Approvals include UL, CSA, and CE, with IP40/IP20 ratings.
PackageModule
Storage58mm
MountingDIN Rail, Chassis Mount, Panel
Quick Jump:
Technical Specifications
Crouzet 88974143 technical specifications.
General
| Approvals | UL, CSA, CE |
| Package/Case | Module |
| Depth | 68mm |
| Display Type | LCD |
| Height | 90mm |
| Input Type | DIGITAL |
| Length | 59.5mm |
| Manufacturer Series | Millenium 3 |
| Max Operating Temperature | 70°C |
| Mechanical Life | 10000000Cycles |
| Memory Size | 368b |
| Min Operating Temperature | -20°C |
| Mount | DIN Rail, Chassis Mount, Panel |
| Number of Inputs | 6 |
| Number of Outputs | 4 |
| Operating Supply Voltage | 240V |
| Output Current | 12A |
| Output Type | RELAY |
| Package Quantity | 1 |
| Ratings | IP40, IP20 |
| Response Time | 5ms |
| Series | Millenium 3, XD10 |
| Size | 58mm |
| Termination | Screw |
| Width | 71.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Crouzet 88974143 Datasheet
Download the complete datasheet for Crouzet 88974143 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

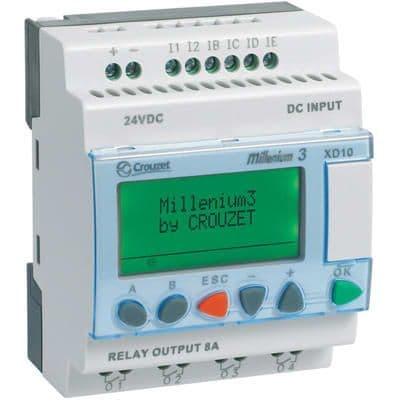

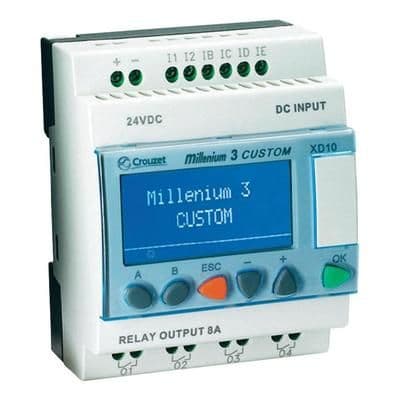

Product Images
