Current Rating40A
MountingPanel, Surface Mount, Screw
Quick Jump:
Technical Specifications
Crydom D2D40 technical specifications.
General
Control Voltage
32V
Current Rating
40A
Depth
19.8mm
Height
58.4mm
Input Current
28mA
Input Type
DC
Isolation Voltage
2.5kV
Isolation Voltage-Max
2.5kV
Lead Free
Lead Free
Length
45.7mm
Load Current
40A
Max Input Current
28mA
Max Operating Temperature
80°C
Min Operating Temperature
-20°C
Max Output Current
40A
Max Output Voltage
100V
Max Supply Voltage (DC)
200V
Min Supply Voltage (DC)
0V
Max Voltage Rating (DC)
200V
Mount
Panel, Surface Mount, Screw
Operating Supply Voltage
200V
Output Current
40A
Output Voltage
200V
Package Quantity
10
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
1-DC Series
Termination
Screw
Throw Configuration
SPST
DC Rated Voltage
200V
Compliance
RoHS
Compliant
Datasheet
Crydom D2D40 Datasheet
Download the complete datasheet for Crydom D2D40 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

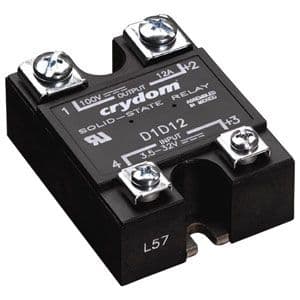

Product Images
